LoRaWAN Bluetooth Gateway LW003-B integrates Bluetooth and LoRawan wireless communication, it can scan BLE Beacon data and transmits data to LoRaWAN gateway, and then upload to server, so as to realize environmental monitoring and indoor positioning.
> Based on LoRaWAN® Protocol
> دعم لتكوين أوضاع ABP وOTAA
> LoRaWAN-based operating protocol
> Nordic nRF52 series, بلوتوث 5.0 compatible
> Low battery indicator
> Configure data intervals
> Firmware update Over The Air (OTA)
> عمر بطارية طويل (4200ماه, الأعلى 3 months operating time)
> Configure ABP and OTAA modes with MKLoRa APP
> Configure LoRaWAN network data through the downlink
> Support for configuring LoRaWAN-Based parameters by downlink command
> Support battery power and direct power supply
> Built-in 4M FLASH memory chip, supports 20,000 pieces of data local storage at most
Seamless and easy integration for Bluetooth and LoRaWAN wireless communications deployment. The conversion highlights of Bluetooth and LoRaWAN enable low-power and long-distance transmission in various applications.
There are seven different combinations to scan and report data using the LW003-B device, each of which can be chosen to suit different situations and help conserve battery life. Users can switch between these strategies as needed, but only one can be active at any given time.
Users can now report only the necessary content from Beacons, tailored to specific Beacon types and their individual needs. The LW003 device has already filtered out effective data for common Beacon types, but users can also customize their reporting for unknown types by selecting different Bluetooth data types and fields.
When the LW003-B device runs out of power or experiences an abnormal shutdown, it can automatically turn back on and resume its working state once it’s powered on again.
The LW003-B will regularly report payloads on its battery level, voltage, درجة حرارة, and humidity as a status reminder, even in case of low battery and shutdown. This helps users to have a better understanding of the device’s working status and manage it effectively.

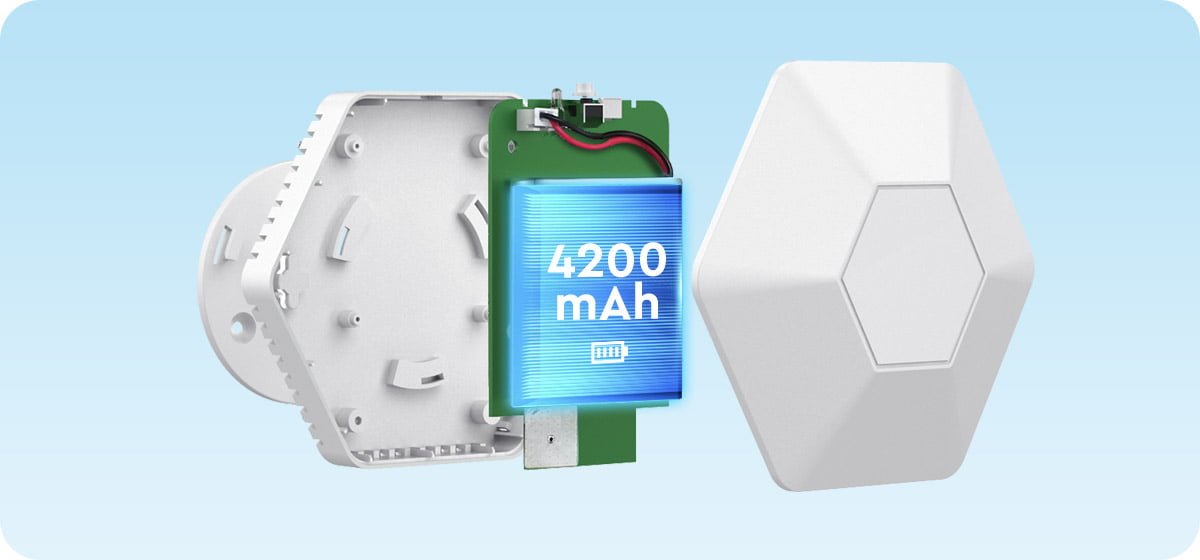

Built-in 4200 mAh rechargeable lithium battery ensures up to 3 months of service life
Approx. 5H from 0 to full (5V/2A)
