LW002-ث

LoRaWAN® Temperature&Humidity Sensor

LW002- TH is an advanced technical humidity and temperature sensor that is efficient and convenient in measuring both the temperature and the humidity. Unlike recent temperature and humidity sensors, it has a powered 8000mAh and a built non-chargeable battery. LW002-TH device has a wide range of uses and applications because it is compatible with indoor and outdoor environments.

> Established on LoRaWAN® Protocol
> Compatible with OTAA modes and configures ABP modes

Temperature & Humidity Sensor

LW002-TH has a super ability to detect both humidity and temperature through its sensor mechanism. Has unique configurable measurement threshold and intervals that help in sensing. The device has a particular modification, which stimulates to trigger an alarm if the point exceeds.

LW002-TH uses modern technology and the acquisition of humidity and temperature to maintain the high consistency, stability, and dependability of a product.

This Lorawan® temperature sensor comes with a long-lasting replaceable battery that can last for even10 years. لكن, the battery may last less or more than ten years depending on environmental factors, transmission interval, and data rate.

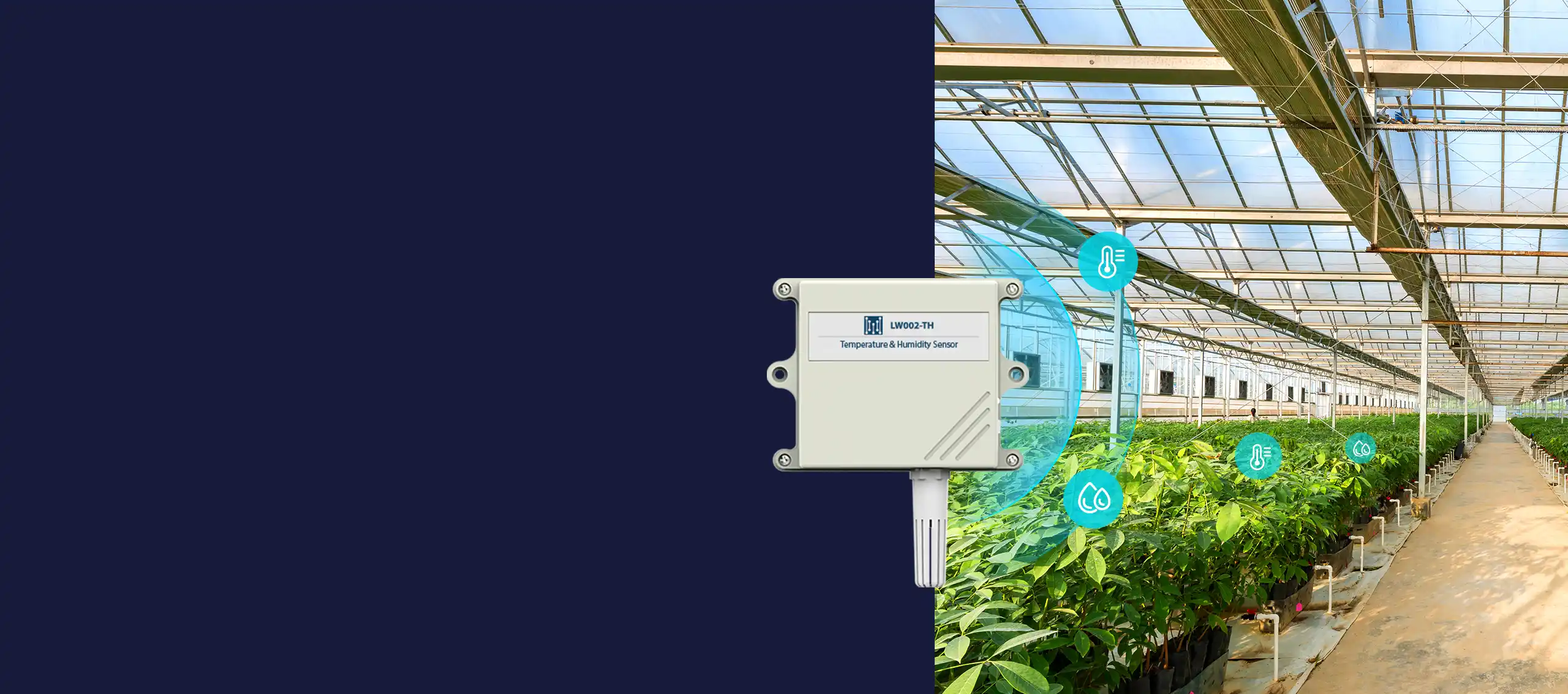

Temperature & Humidity monitoring by LoRaWAN Temperature&Humidity Sensor LW002-TH

Temperature & Humidity Sensor

LW002-TH has a super ability to detect both humidity and temperature through its sensor mechanism. Has unique configurable measurement threshold and intervals that help in sensing. The device has a particular modification, which stimulates to trigger an alarm if the point exceeds.

LW002-TH uses modern technology and the acquisition of humidity and temperature to maintain the high consistency, stability, and dependability of a product.

This Lorawan® temperature sensor comes with a long-lasting replaceable battery that can last for even10 years. لكن, the battery may last less or more than ten years depending on environmental factors, transmission interval, and data rate.

Supports external temperature and humidity probe

Three external probes are available: SHT30 Standard Probe, SHT30 Waterproof Probe, and PT100 Waterproof Probe.N/B: PT100 Waterproof Probe is restricted to support and sense temperature only

SHT30 Standard Probe

SHT30 Standard Probe

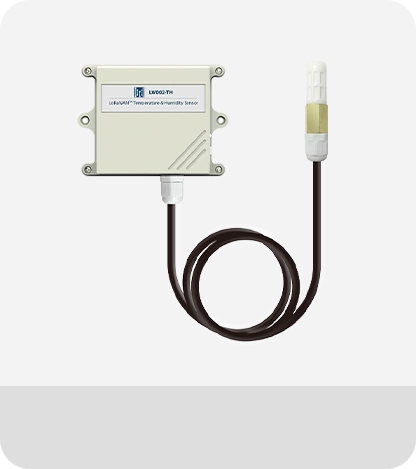

SHT30 Waterproof Probe

SHT30 Waterproof Probe

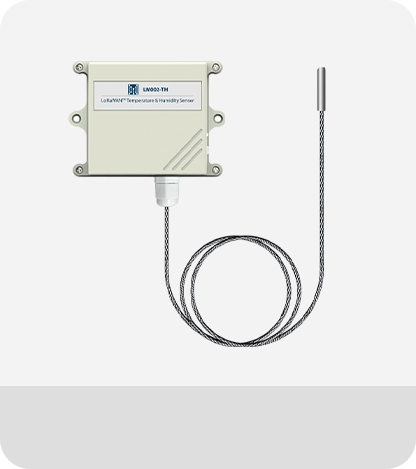

PT100 Waterproof Probe

PT100 Waterproof Probe

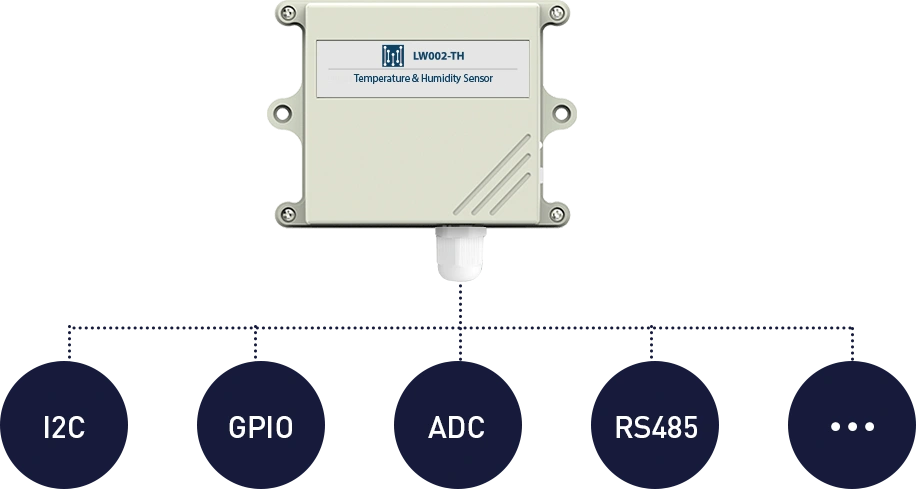

Multiple sensor interfaces are reserved

LW002-TH has broader compatibility that Supports interfaces for sensor customization.
على سبيل المثال, it supports RS485, I2C, ADC, GPIO interface.

sensor interfaces of LoRaWAN Temperature&جهاز استشعار الرطوبة

Ultra Low Power Consumption

The Lora® temperature sensor has a replaceable battery that can last for even 10 سنين.

It has a report configuration system that sends data twice daily.

Battery: Li-SOCl2 Battery ER18505 4000 mAh.

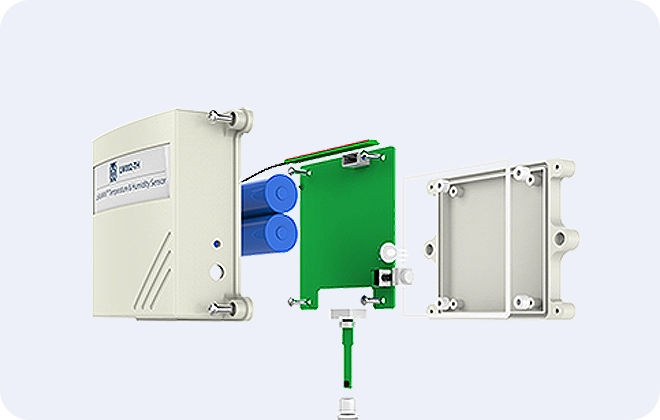

Internal structure of LoRaWAN Temperature&جهاز استشعار الرطوبة

يدعم

> Detection of humidity and temperature through the sensor
> Exterior humidity and temperature probe.
> Compatible with: AS923MHZ, CN470MHZ, US915MHZ, EU868MHZ, AU915MHZ.
> Device parameter with a remote downlink server configuration.
> Threshold Alarm
> Multicasts and downlink
> Frequent plan for an inclusive range

Categories

> Wireless for IoT
> Thermal Sensors
> أجهزة الاستشعار
> إنترنت الأشياء

Extra features

> First response time
> Accurate humidity measurement
> High accurate temperature

امتلك مكدس LoRaWAN

optimized for low-power operations, قليل من الكمون, and global adaptability.

التكوين السهل

All parameters can be modified via APP easily and support OTA.

size of LoRaWAN Temperature&جهاز استشعار الرطوبة

أداء لورا

بروتوكول لوراوان

V1.0.2

تردد لورا

US915/AU915/AS923/EU868/IN865

نطاق لورا

Up to 4 كم (in open area)

قوة تكساس

الأعلى 19 ديسيبل

حساسية

-142.5ديسيبل @ SF12 300 بت في الثانية

Application Parameter

درجة حرارة التشغيل

-40℃~ +70℃

Operating Humidity

10%~90%

IP Rate

IP65

الخصائص الفيزيائية

Dimensions(L×W×H)

108.6mm×60mm×33.2mm

الوزن الصافي

136g (±2g)

مادة القشرة

ABS

لون

أبيض

زر

ميكانيكي

قاد

RGB

المعدات

مزود الطاقة

4000mAH non-chargeable battery

Sleep Mode Current

22uA

التشغيل الحالي

Max 150mA@20dBm

Motion Tracking

Built in 9 axis accelerometer MPU-9250

Positioning Mode

GPS

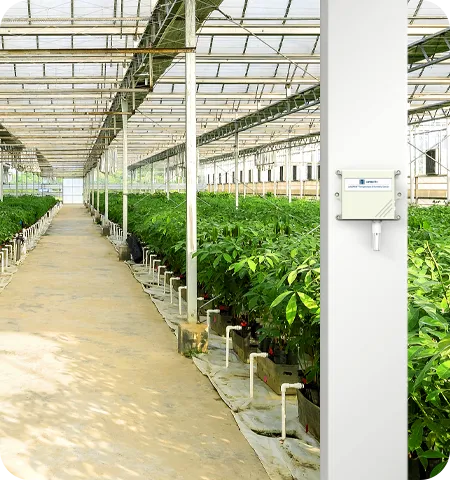

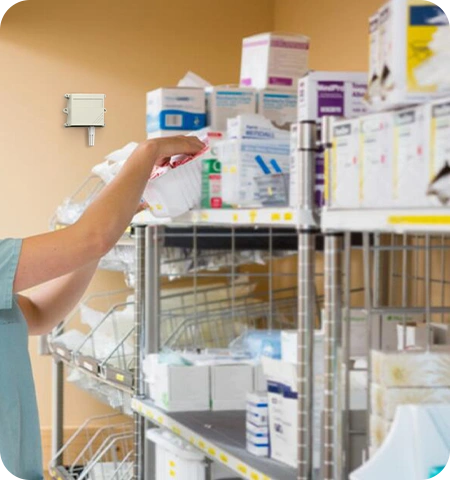

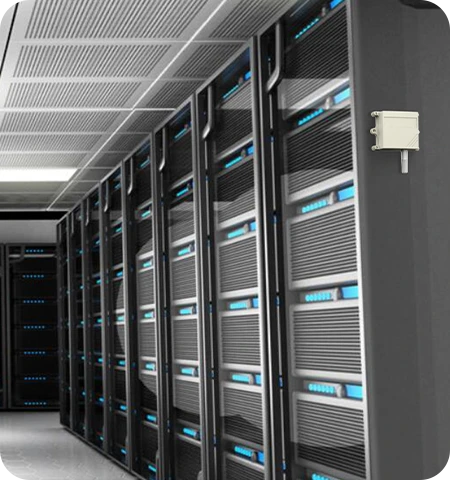

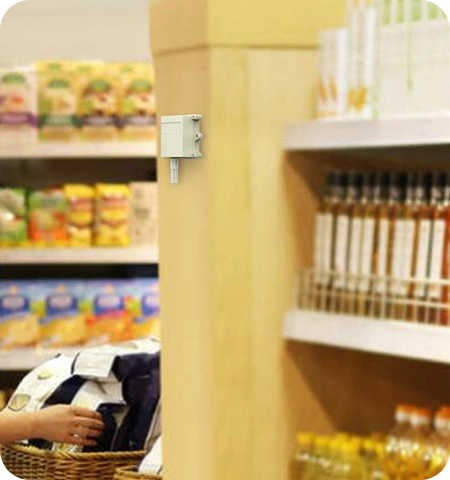

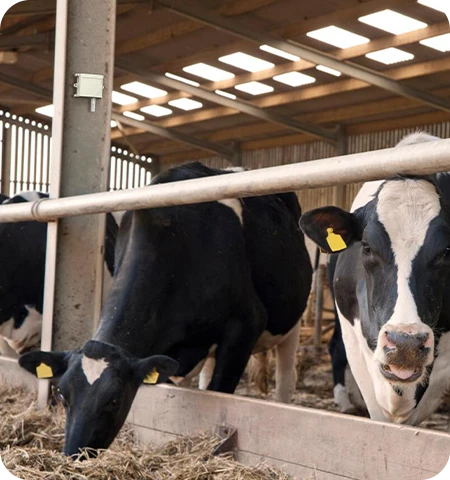

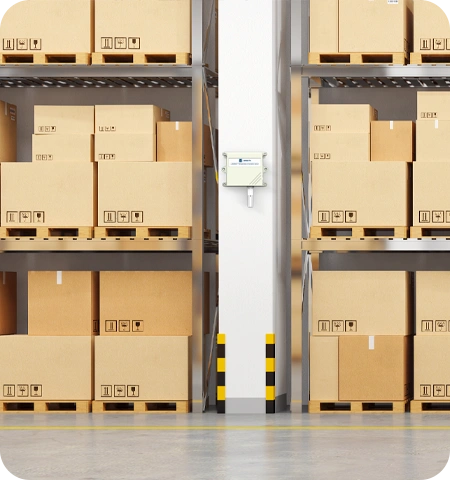

Application of LW002-TH
